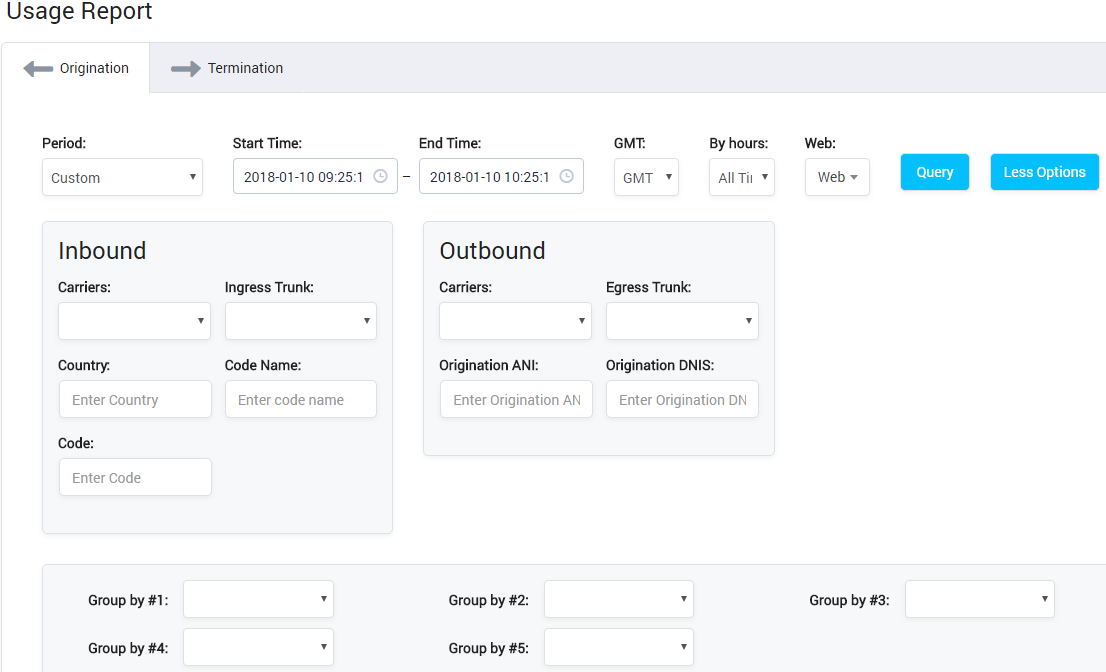

Screenshot: Origination Query Form
| Field Name | Description |
|---|---|
| Period | The period time to query. All calls within this period will appear. |
| GMT | Select the time zone will apply to the period time. |
| By Hours | Select the type of time to group data. |
| Web | On the right of time field to select the action after search: Display on Web, Export Excel CSV, Email when done or Export from Storage. |
| Carriers | Caller incall. |
| Statistics Ingress Trunk | Ingress Trunk is used. |
| Country | Countrywherecaller makes the call. |
| Code Name | Code Name incall. |
| Code | The Code Number in the call. |
| Carrier | The name of the callee |
| Egress Trunk | Ingress Trunk is used in the call. |
| Origination ANI | Phone number of the Caller. |
| Origination DNIS | Phone number of the Callee. |
| Group By | Select parameters to group by in report. |
Filling out all parameters, click on Query button then the result will be appeared on the form.
Result Form
After clickon Query button, the result will be appeared on form as below:

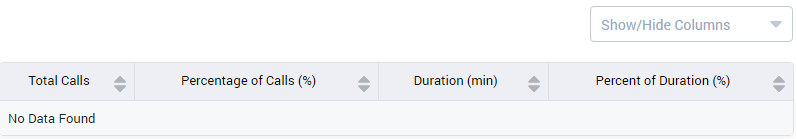

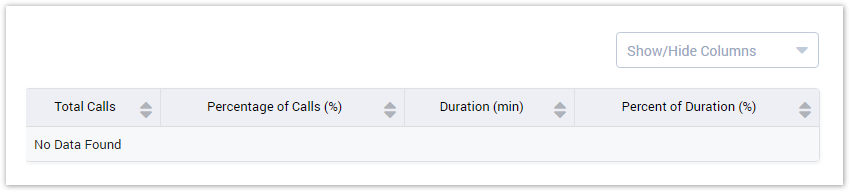

Screenshot: Origination Result Form
| Field Name | Description |
|---|---|
| Total Calls | The total of calls |
| Percentage of Calls (%) | Percentage of Calls |
| Duration (min) | Total Duration Time of all calls |
| Percent of Duration (%) | Percentage of Duration Time. |
Termination
The interface of Usage Report on Termination as below:

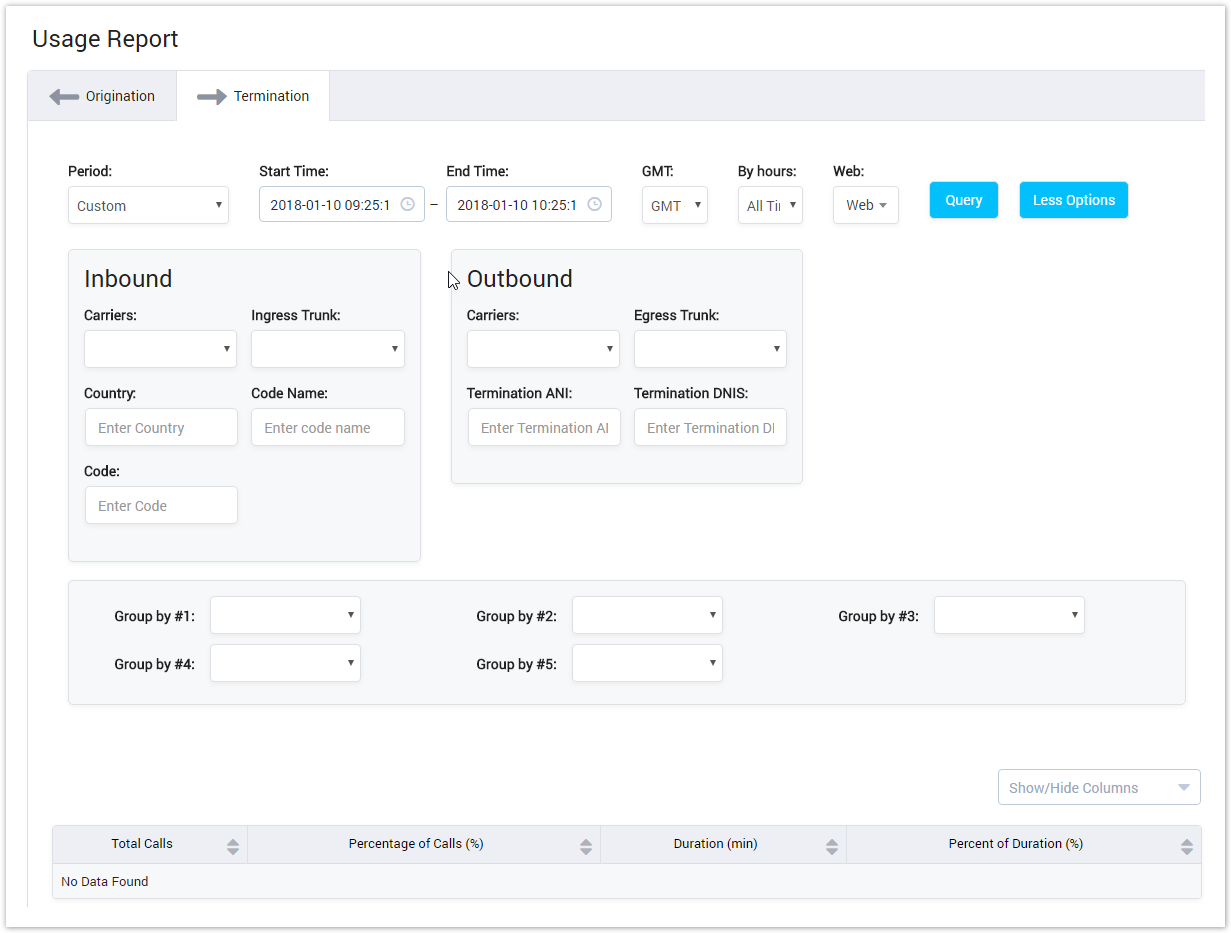

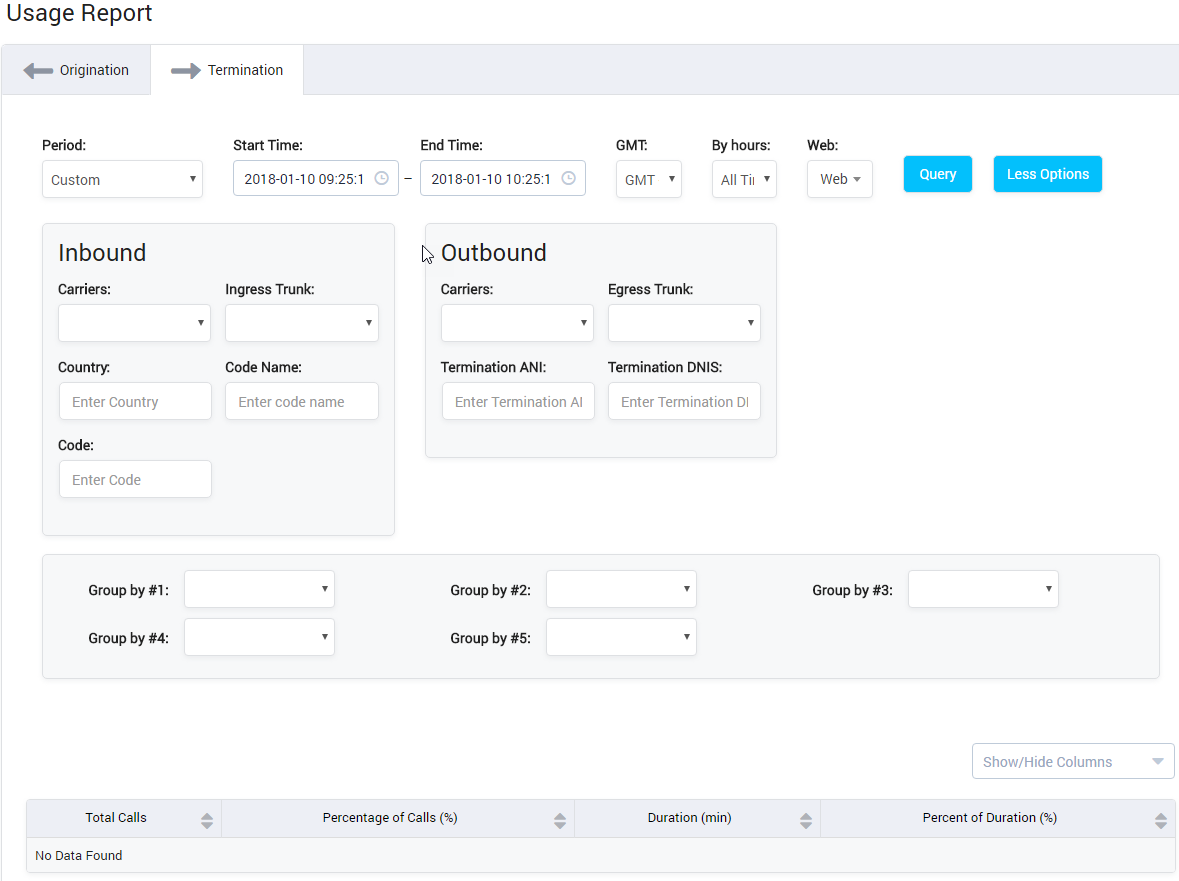

Screenshot: Usage Report on Termination
It is similar to Origination but the analysis is performed on Termination (Egress Trunk) instead of Origination.
