Digital Translation is used to change displayed number of caller or caller to the other number. Thissectionallowsusertomanageall Digital Maps as well as Digital Map Details.
Digit Mapping Rule List
By click on Route → Digit Mapping Rule → The main windowofthissectionwillappearbythelistofallavailableDigital Maps.
Query Form
On Digital Maps page, there is a form allow you to input parameters to query:
Screenshot: Query Form
Input keyword into Search textbox and click on Query button. The result will be displayed as expected.
On this page:
Result Form
The list of Digit Mapping Rule will appear as below:

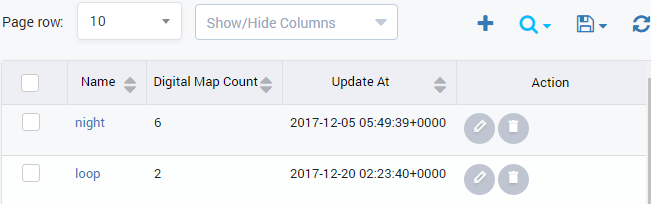

Screenshot: Result Form
| Column Name | Description |
|---|---|
| Name | Name of Digital Map. |
| Digit Map Count | Total number translations in Digital Map. |
| Update At | The last date/time when the digital map was updated. |
| Action | Actionperformedonthe digital map. |
| Button | Description |
|---|---|
| Is used to edit the Digital Map. |
| Is used to delete the Digital Map. |
| Is used to add new the Digital Map. |
| Is used to show/hide the query form |
| Is used to download the list of Digital Map by two types of file: CSV and XLS. |
| Is used to refresh to get latest the list of Digital Map. |
| Is used to set the total of records per a page. |
| Is used to select the column which will be shown/hidden. |
| Is used to go to next, previous page. It is also used to go to the specific page by clicking on thenumberofpage. |
Adding New Digimap
To create new Digital Map, click on
icon. After clicking,thenewrowwillappearallowuser to add new.

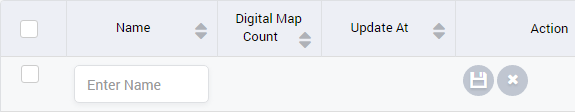

Screenshot: Creating New Digital Map
After filling out all fields, click on Save icon to save or click on Delete icon to cancel.
Deleting All
To delete all records, click on Delete All button.
Delete All button can be used to permanently remove records from the system. Please, use this feature with care – deleted records cannot be restored by any means.
Digit Mapping Detail
Number Translations List
To view all Number Translations of any Digital Map, click on the number on Digit Map Count column. The new window will appear will list of all available Number Translations.
Screenshot: Number Translations
Creating New Number Translations
To create new Number Translation, click on Create New button. After clicking, the new row with many fields will appear allow user to add new.

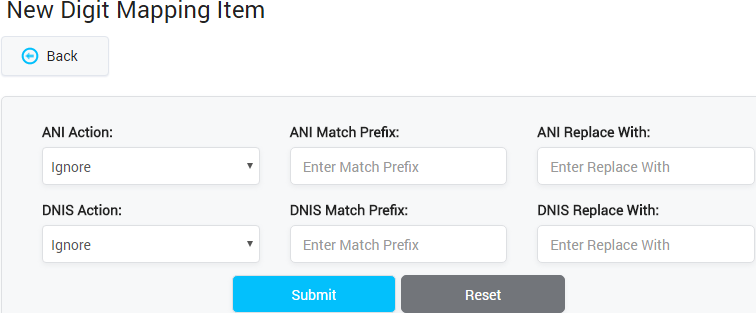

Screenshot: Creating New Number Translation
| Column Name | Description | ||||||
|---|---|---|---|---|---|---|---|
| ANI-Action | Therearethreeoptions :
| ||||||
| ANI-Match Prefix | The prefix to compare in condition and will be replaced. | ||||||
| ANI-Replace With | The prefix replaces match prefix. | ||||||
| DNIS-Action |
| ||||||
| DNIS-Match Prefix | The prefix to compare in condition and will be replaced. | ||||||
| DNIS-Replace With | The prefix replaces match prefix. |
Importing Number Translation
This part allows userto upload Number Translation with all fields. Click on Import List tab, this part will appear as default:

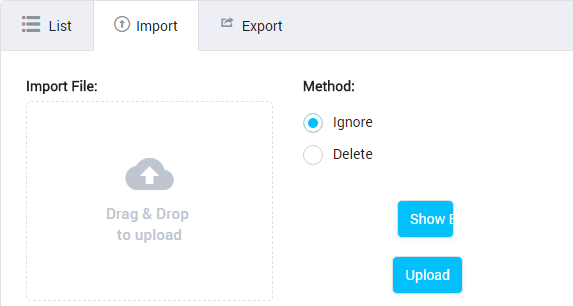

Screenshot: Importing Number Translation
| Field Name | Description |
|---|---|
| Import File | Select file to import. After uploading, Show and Modify button will be appeared allow user to show and modify all records before importing |
| Method | Action performed on duplicate records. Ignore or delete |
| Example | Download example file. |
Fill out all parameters and click the Upload button to import.
Exporting Number Translations List
Click on Export tab, the new window will be appeared allow user to download Number Translations list.

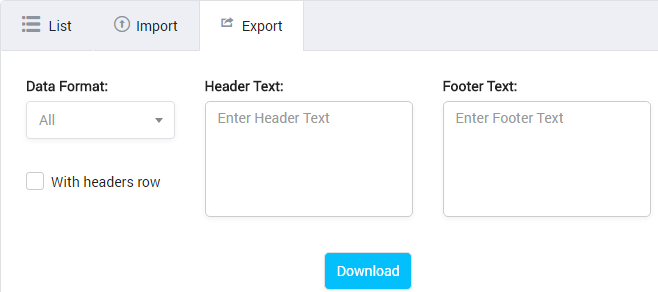

Screenshot: Exporting Number Translations List
Select format, header text, column want to export and click the Download button. The exported file will be downloaded as expected.
