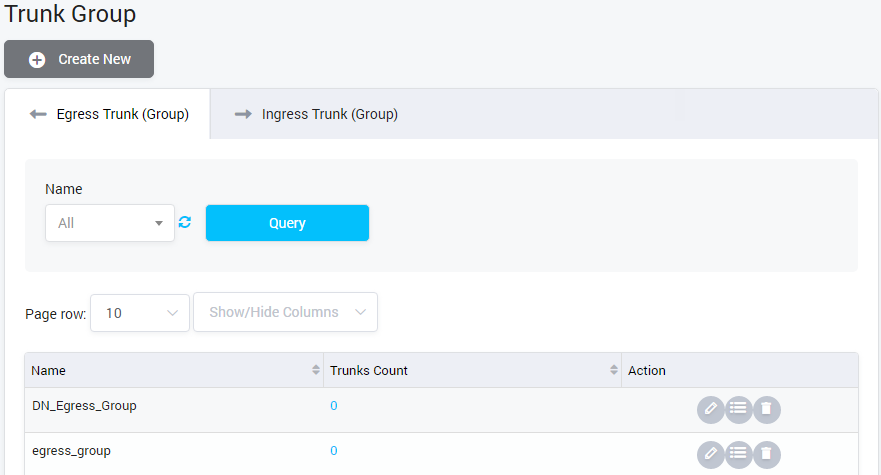

Screenshot: Egress Trunk Group List
Field Name | Description |
---|---|
Name | The name of the Egress Trunk Group. |
Trunks Count | The total of Egress Trunks belong to this group. |
Action | The action performed on Egress Trunk Group. |
Button | Description |
---|---|
Is used to edit the Egress Trunk group. | |
Is used to show the list Egress Trunks belong to this group. Click on this icon, the user will be redirected to the Egress Trunk page. | |
Is used to delete the Egress Trunk group. | |
Is used to select the name of Trunk Group to query. Click on the arrow, the list of all available Trunk Group will be displayed. | |
Is used to refresh to get latest the list of Egress Trunk group. | |
Is used to query data. Clicking on this button, the result will be displayed. | |
Is used to set the total of records per a page. | |
Is used to select the column which will be shown/hidden. | |
Is used to go to next, previous page. It is also used to go to the specific page by clicking on the number of page. |
Adding Egress Trunk Group
To add new the Egress Trunk Group, click on the Create New button. The new page will be showed allow to fill all related information and create.

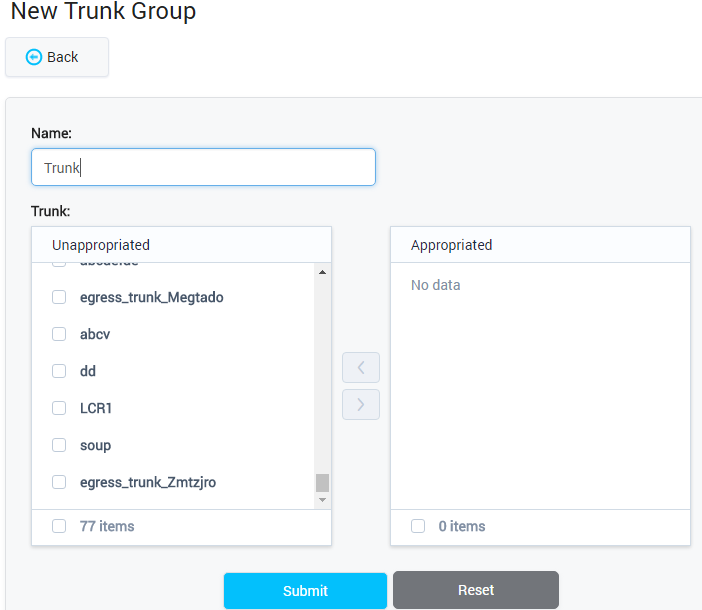

Screenshot: Adding Egress Trunk Group
Field Name | Description |
---|---|
Group Name | The name of the Egress Trunk group. |
Trunks | The list of available Egress Trunks can be added to group. |
Selected Trunks | The list of Egress Trunks is added to the group already. |
Select the list of Egress Trunks on the Trunks column by check on the checkbox, then click on the button to add into group.
Select the list of Egress Trunks on the Selected Trunks column by check on the checkbox, then click on the button to remove.
After filling in all the required fields, selecting the Egress Trunk, click on the Submit button to save the Egress Trunk group. Click on the Back button to go back to the Egress Trunk List page
Ingress Trunk Group
Click on the Ingress Trunk Group tab to go to this page. The UI will be shown as below:

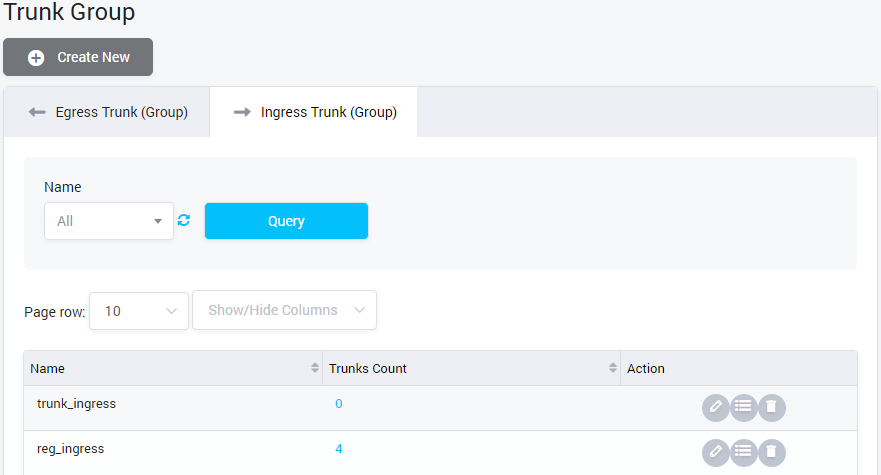

Screenshot: Ingress Trunk Group
All the UI, button and function are similar to the Egress Trunk Group. But it performed on the Ingress Trunk instead of Egress Trunk. Please refer Egress Trunk Group tab for further informations.
