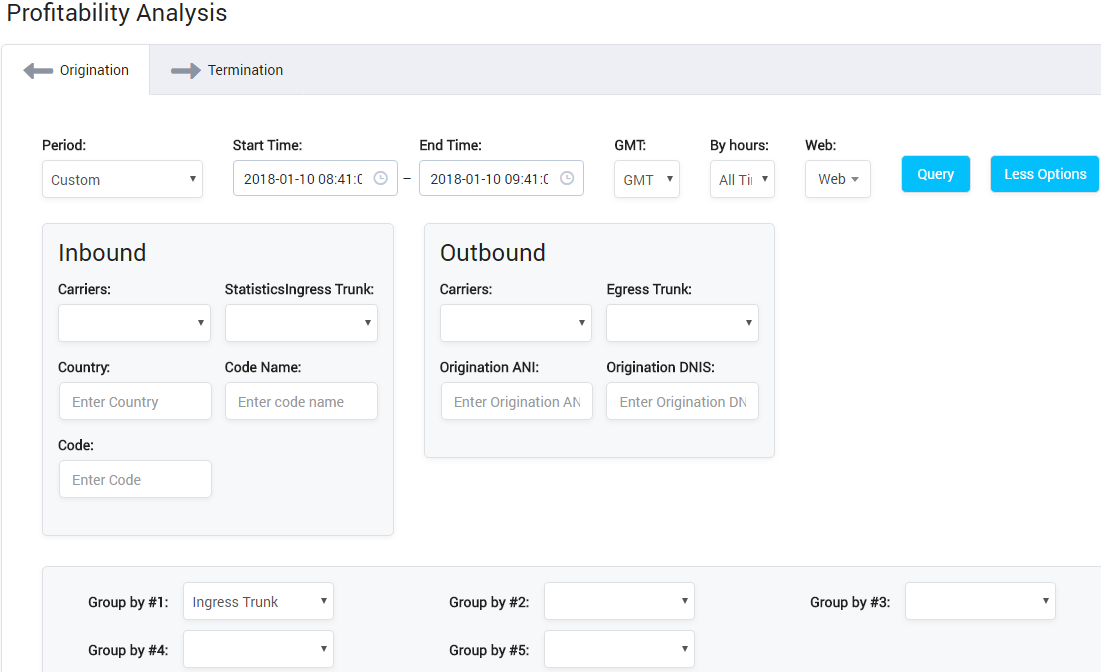

Screenshot: Origination Query Form
| Field Name | Description |
|---|---|
| Period | The period time to query. All calls within this period will appear. |
| GMT | Select the time zone will apply to the period time. |
| By Hours | Select the type of time to group data. |
| Web | On the right of time field to select the action after search: Display on Web, Export Excel CSV, Email when done or Export from Storage. |
| Carriers | Caller in call. |
| Ingress Trunk is used. | |
| Country | Country where caller makes the call. |
| Code Name | Code Name incall. |
| Code | The Code Number in the call. |
| Carrier | The name of the callee |
| Egress Trunk | Ingress Trunk is used in the call. |
| Origination ANI | Phone number of the Caller. |
| Origination DNIS | Phone number of the Callee. |
| Group By | Select parameters to group by in report. |
Filling out all parameters, click on Query button then the result will be appeared on the form.

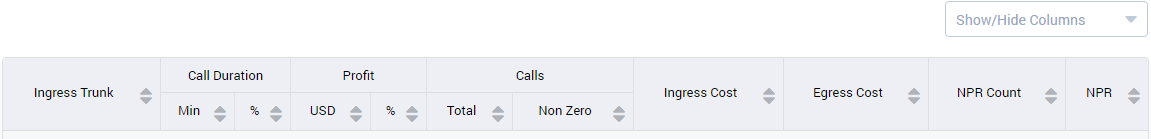

Result Form
After click on Query button, the result will be appeared on form as below:
Screenshot: Origination Result Form
| Column Name | Description |
|---|---|
| Ingress Trunk | The ingress trunk which used to analyze. |
| Call Duration (min) | Total Call Duration of each trunk. |
| Call Duration (%) | It is the percentage of Call Duration of each trunk with Call Duration of all trunks. |
| Profit (USD) | Profit (by USD) of each trunk. |
| Profit (%) | It is the percentage of the profit of each trunk with profit of all trunks. |
| Calls (Total) | Total of calls on trunk. |
| Calls (Not Zero) | Total of Non-Zero calls on trunk. |
| Calls (Success) | Total of success calls on trunk. |
| Ingress Cost | Cost of Ingress. |
| Egress Cost | Cost of Egress. |
| NPR Count | Total of Non Profitable Route. |
| NPR | Percentage of Non-Profitable of Route. |
Termination

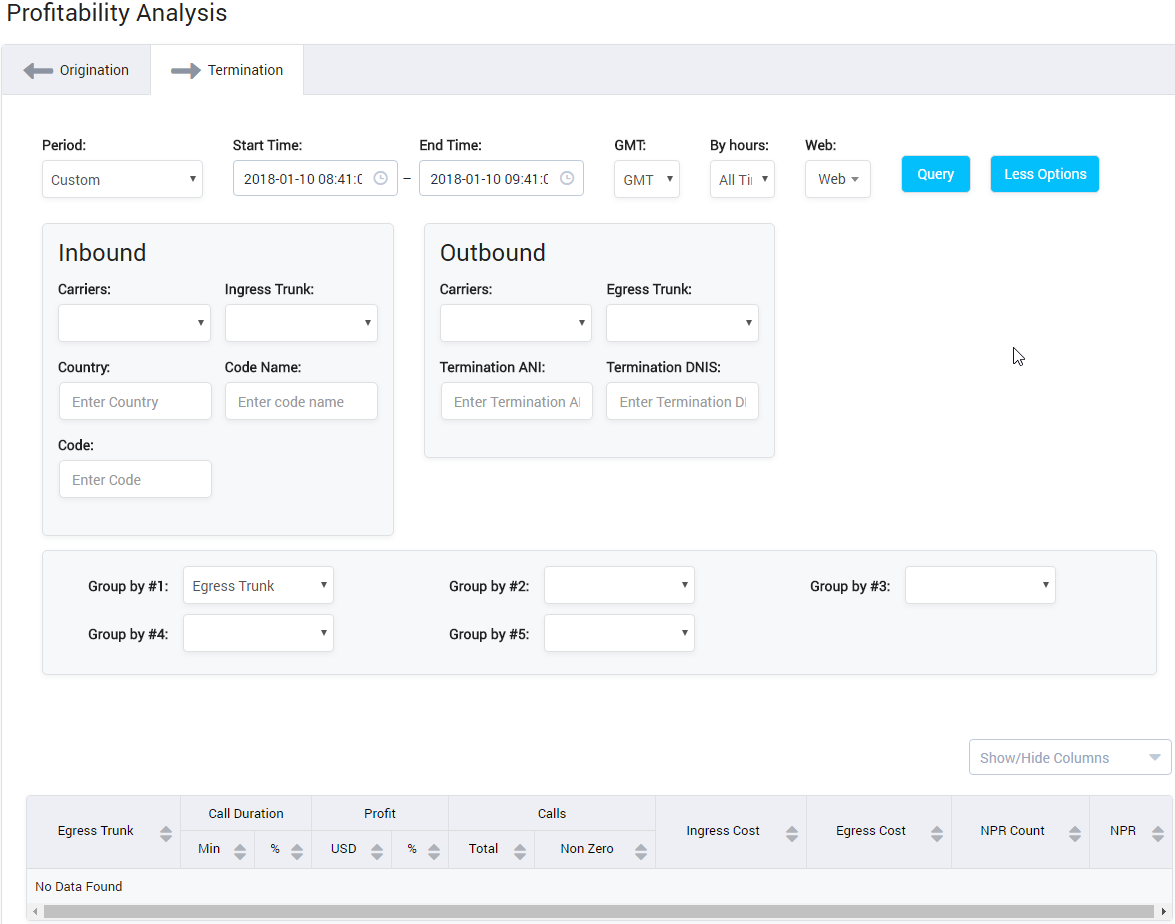

The interface of Profitability Analysis on Termination as below:
Screenshot: Profitability Analysis on Termination
It is similar to Origination but the analysis is performed on Termination ( Egress Trunk ) instead of Origination.
