Field Name | Description |
---|---|
Period | The period time that the new rate will be effectived. |
GMT | Set the Time Zonewillapplyontheperiodtime. |
Update US Jurisdiction | Update new Rate on US Jurisdiction. |
Re-rate Trunk Type | Select Trunk Type to Re-rate. |
Status | Select the type of trunk will be applied the new rate:
|
Egress/Ingress | Select Trunk to Re-rate. |
Trunk | Trunk Name |
Rate Table | Rate Table will be effective. |
Set Effective Date to | Set date/time when new Ratestarttakeeffect. |
Action | ActionperformedonRe-rate method |

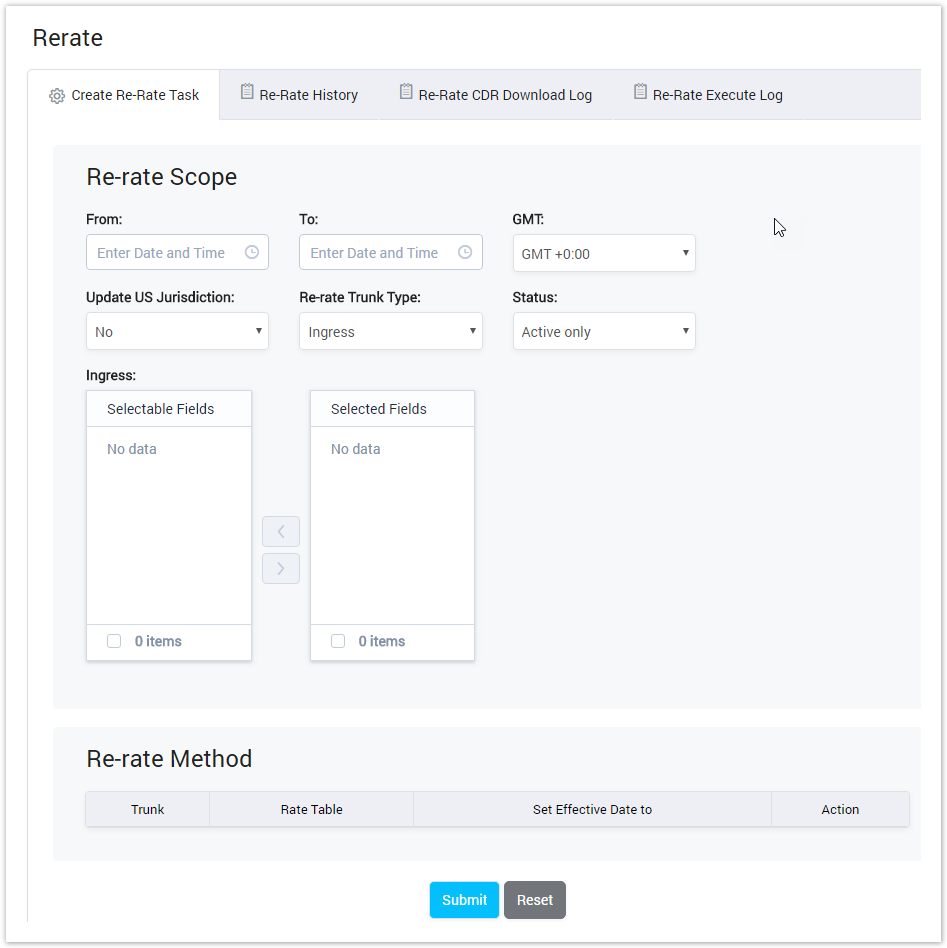

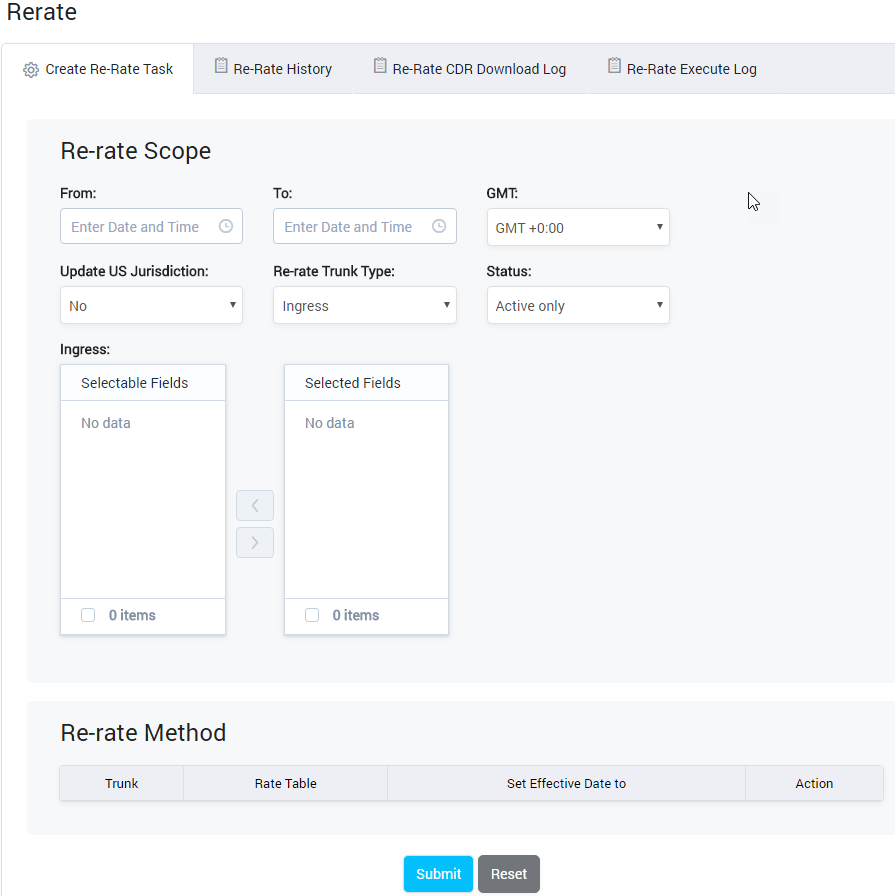

Filling in all parameters, then click on Submit button to create the new Re-Rate task, or click on Reset button to clear all fields.
Re-Rate History
This tab is used to see the history of all Re-Rate tasks.
Click on Re-rate History, this tab will be appeared as below:

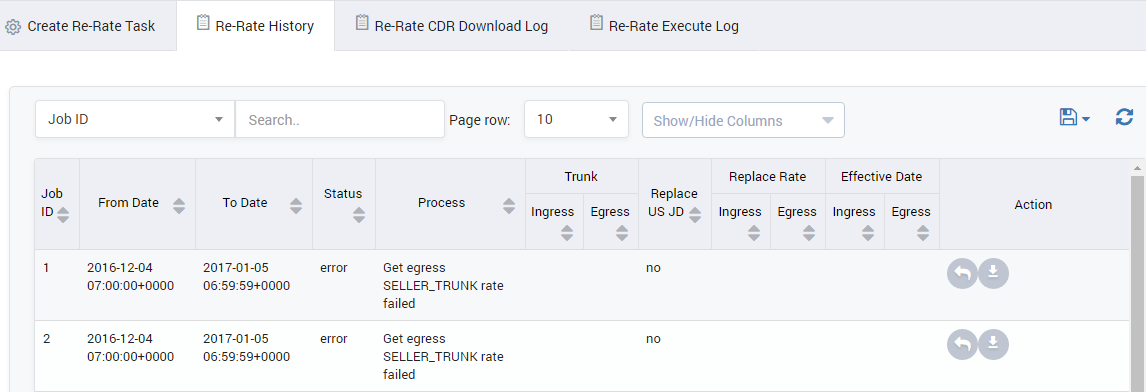

Screenshot: Re-rate History
Column Name | Description |
---|---|
Job ID | ID of Re-rate Task |
FromDate | The start time that the new rate will be effectived. |
To Date | The end time that the new rate will be effectived. |
Status | StatusofTask. |
Process | Theprocessoftask. |
Trunk - Egress | List Egress Trunks which task will apply to. |
Trunk - Ingress | ListInressTrunks which task will apply to. |
Replace US JD | Replace US JD or not. |
Replace Rate - Ingress | Using new Rate to replace old Rate on Ingress. |
Replace Rate - Egress | Using new Rate to replace old Rate on Egress. |
Effective Date - Ingress | The date/time when new rate will apply on Ingress Trunk. |
Effective Date - Egress | The date/time when new rate will apply on Egress Trunk. |
Action | Actio nperform on record |
Icon | Description |
---|---|
Is used toshowlistofIngress Trunks which task will apply to. | |
Is used toshowlistofEgress Trunks which task will apply to. | |
Is used to Re-generate Report. | |
Is used to download New CDR. |
Re-rate CDR Download Log
This tab is used to show all Logs of Re-rate CDR Download. To know how to download Re-Rate CDR, please refer topic above ( Re-Rate History )
Click on Re-rate CDR Download Log, this tab will be appeared as below:

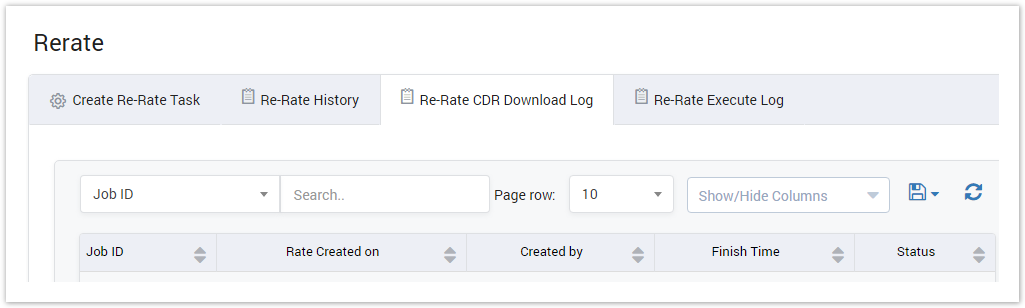

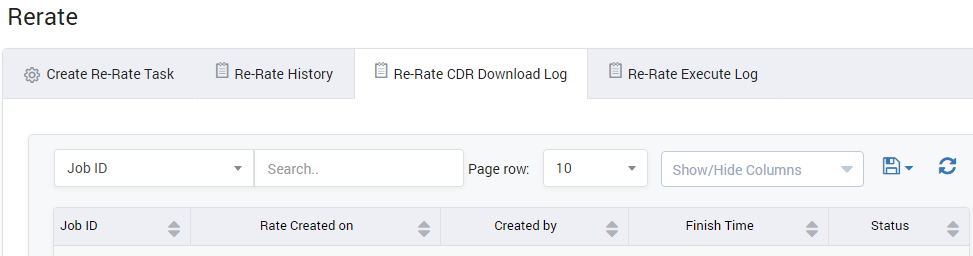

Screenshot: Re-rate CDR Download Log
Column Name | Description |
---|---|
Job ID | ID of Download Log task |
Created On | The date/time when the Re-rate CDR was downloaded. |
Created By | The person whodownloadRe-rate CDR. |
Finish Time | The date/time when the Re-rate CDR is done. |
Status | Statusof Task. |
Re-rate Execute Log
This tab is used to show all Logs of Re-rate execution.
Click on Re-rate Execute Log, this tab will be appeared as below:

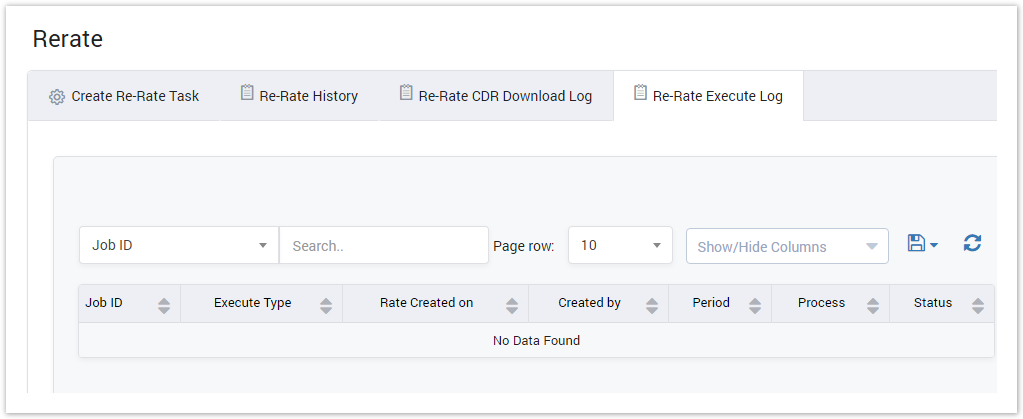

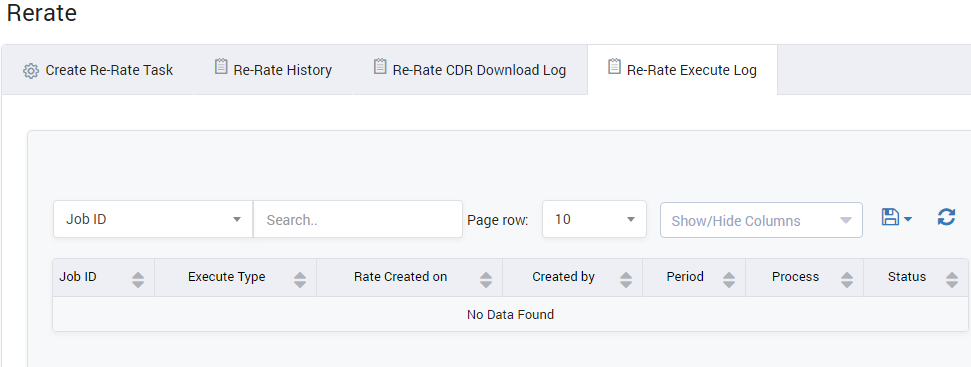

Screenshot: Re-rate Execute Log
Column Name | Description |
---|---|
Job ID | ID of Re-rate Execution. |
Execute Type | Type of Re-rate Execution. |
Created On | The date/time when the Re-rate task was executed. |
Created By | The person who executing Re-rate Task. |
Period | The period time of Re-rate execution. |
Process | Process of Task |
Status | Status of Task. |
